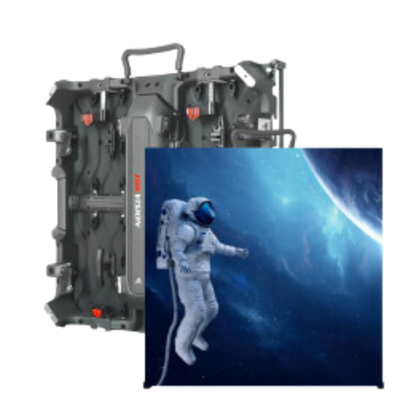

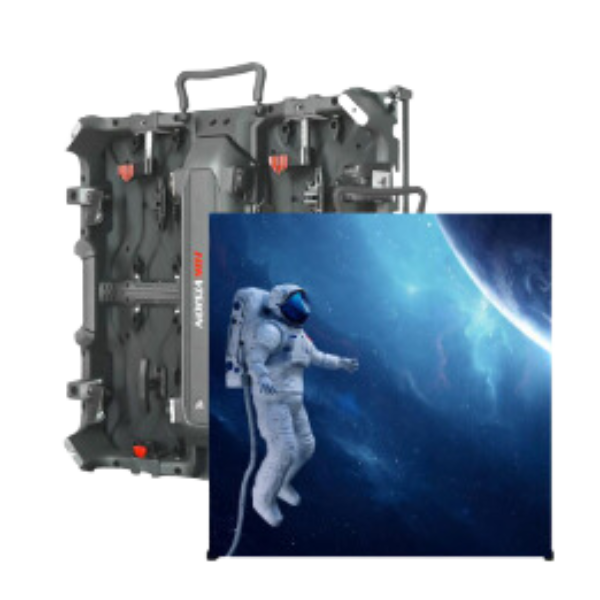

RENTAL LED DISPLAY P3.9 outdoor 500x500mm HIKVISION DS-D4239RO-CQ made of aluminum quick-assembly cabinets

• • Precision die-casting aluminum housing, ultra-thin and lightweight, 500*500≤7.5kg/housing, only 87.5mm thick;
  • 500X500/500X1000 mm cabinets can be mixed and matched to create different shapes;

  • Both the 500x500mm and 500x1000mm cabinets use the same model minimalist mini control box and can be shared, saving installation and calibration time;

  • Optional curved lock, capable of connecting large screens with ±10-15° inner arc, outer arc, 90° corner, etc;

  • The modular design of the button lock allows for quick installation, removal and maintenance within 5 seconds;

  • Silent operation: no fan, noise ≤ 40DB; No influence on the audiovisual effect on site;

  • Big screen background optimization plan; High refresh, SLR, 1/3000S shutter capture, no flicker, no ghost scanning line;

  • Indoor and outdoor universal pixel pitches with P1.9/2.6/2.9/3.9/4.8 ets; Specializes in providing overall LED display solutions for events such as conferences, stages, product launches and real estate.


This offer includes an LED cabinet, power and signal cables, a 5 or 7 cabinet shipping box (you need to buy at least 5 cabinets to get a shipping box), and you will also need to buy a video processor separately. The control system is NovaStar

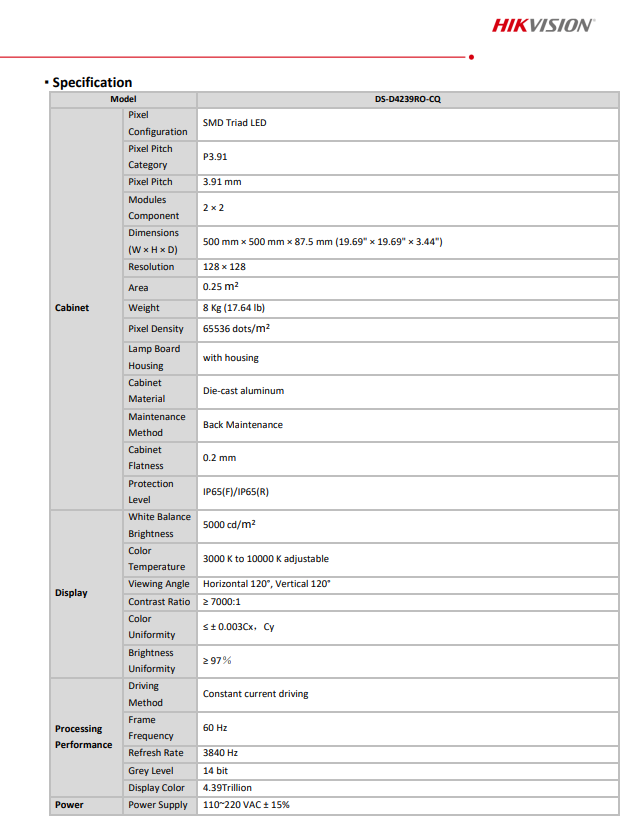

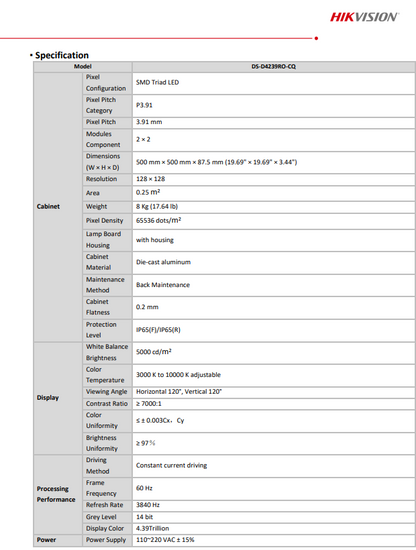

• Pixel Configuration SMD Triad LED
• Pixel Pitch Category P3.91
• Pixel Pitch 3.91mm
• Modules Components 2 × 4

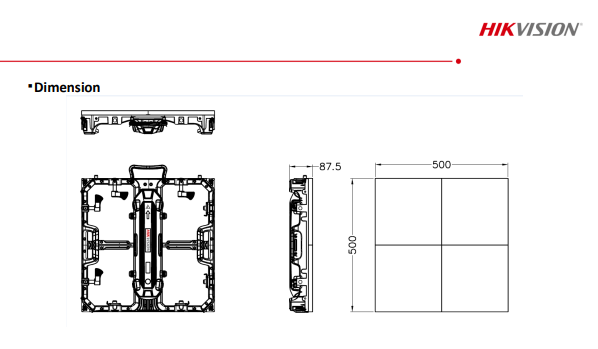

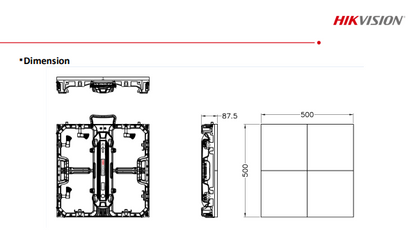

• Dimensions (W × H × D) 500 mm × 500 mm × 87.5 mm
• Resolution 128 × 28
• Area 0.125 m²
• Weight 7 Kg
• Pixel Density 65536 dots/m²
• Lamp Board Housing with housing
• Cabinet Material Die-cast aluminum
• Maintenance Method Back Maintenance
• Cabinet Flatness 0.2 mm
• Protection Level IP65(F)/IP65(R)

• Display
• White Balance Brightness 5000 cd/m²
• Color Temperature 3000K to 10000K adjustable
• Viewing Angle Horizontal 120°, vertical 120°
• Contrast Ratio ≥ 7000:1
• Color Uniformity ≤ ± 0.003Cx，Cy
• Brightness Uniformity ≥ 97％

• Processing Performance
• Driving Method Constant current driving
• Frame Frequency 60Hz
• Refresh Rate 3840 Hz
• Gray Level 14bit
• Display Color 4.39 Trillion

• Power
• Power Supply 110~220 VAC ± 15%
• Max. Consumption ≤ 750 W/m²
• Average Consumption ≤ 240 W/m²

• Working Environment
• Working Temperature -15-50℃
• Working Humidity 10% to 90% RH (non-condensing)
• Storage Humidity 10% to 90% RH (non-condensing)
• Storage Temperature -40~80℃
• Lifespan Lamp 100,000 hours
