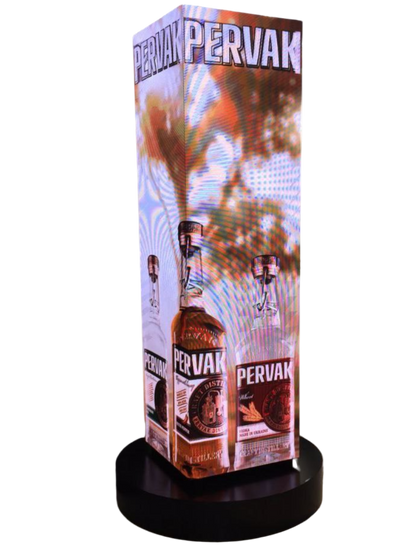

4-sided LED TOTEM

The standard TOTEM size is 192 cm high and 64 cm wide (on each side).

It can also be made to measure in an aluminum frame. the size can be multiplied by 320mm by the horizontal and 160mm by the vertical.

Made to order based on your measurements.

Possibility to install modules with GOB technology, which is resistant to damage and can be washed!

Led

Pixel Pitch: 1.536 / 1.86 / 2mm / 2.5mm / 3.076mm

Resolution on each side: 1220x416px / 1032x344px/ 960x320px / 768x256px / 624x208px

Pixel configuration: 1RGB

LED type: SMD 1111/ 1515/ 1515 / 2121 / 2121

LED type: Sanan

Brightness: 650 nits

Viewing angle: Horizontal: 140º, Vertical: 120º

Refresh rate: 1920 Hz / 3840 Hz

Power supply

Power consumption (maximum): 800 watts / 1m

Power consumption (average): 500 watts / 1m

Input voltage: AC 230V +/- 10%

Control via LAN, WIFI, Internet cloud.

High-quality modern control card with all functions installed. It can play any video and image files, GIF animation.

If necessary, you can install a syncronius controller with an HDMI port to play video from the input signal

Warranty 2 years
